PTB-Racing Twin Disc Clutch Kit with Dual-mass flywheel for BMW M57 E46 / E83 - Organic/Organic / Standard
Friction Discs 1 and 2
Organic/Organic
Organic/Sinter
Sinter/Sinter
Pressure Plate
Standard
Performance
$1,991.00
Add to Cart
IMPORT Tariffs for USA . Item Ships from the Germany.
Ship Time: 1-3 weeks

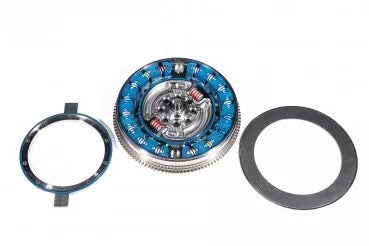

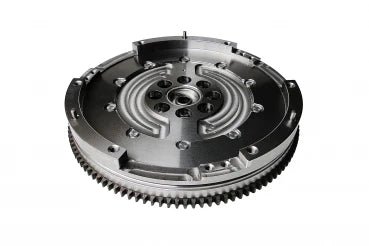

Reinforced new CNC sport dual-mass flywheel for 330D E46/E83 M57D30 (306D2) 330D engines (PTB-ZMS) including a 2-disc clutch
The CNC dual-mass flywheel is machined from high-quality steel for maximum performance and consistent quietness in the drivetrain!
Increased block torque to handle various tuning levels - In combination with a good clutch, this product is a "must" for every motorsport-oriented vehicle owner.

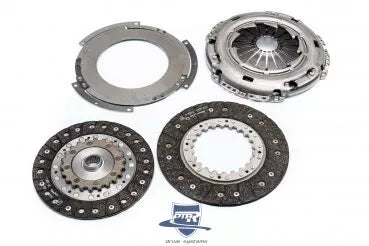

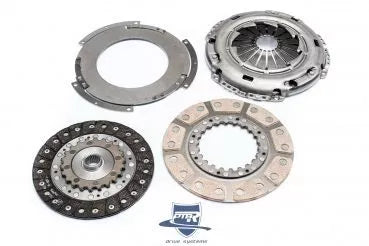

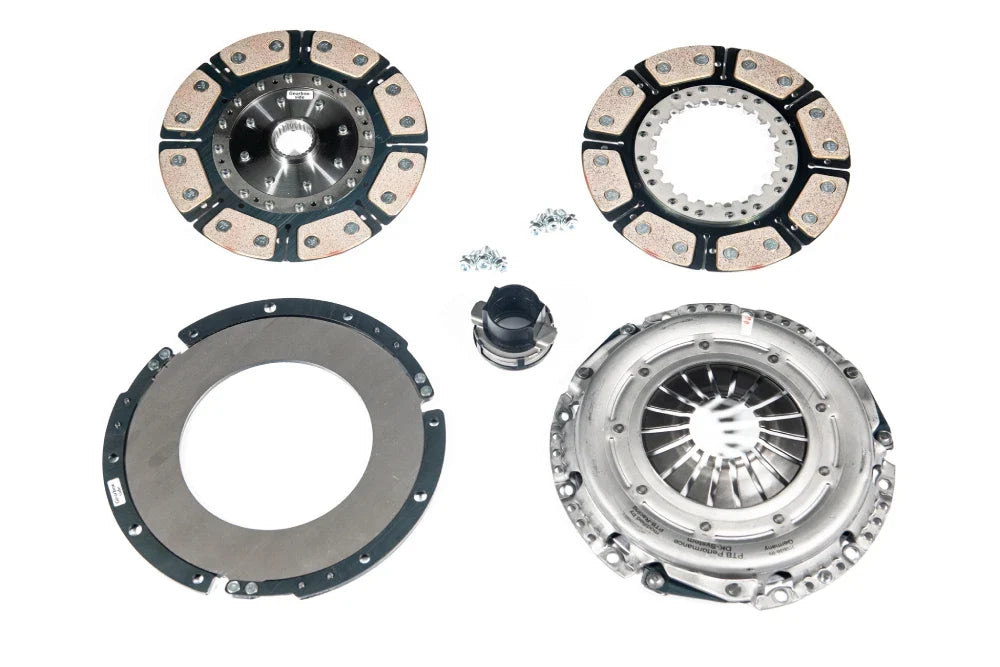

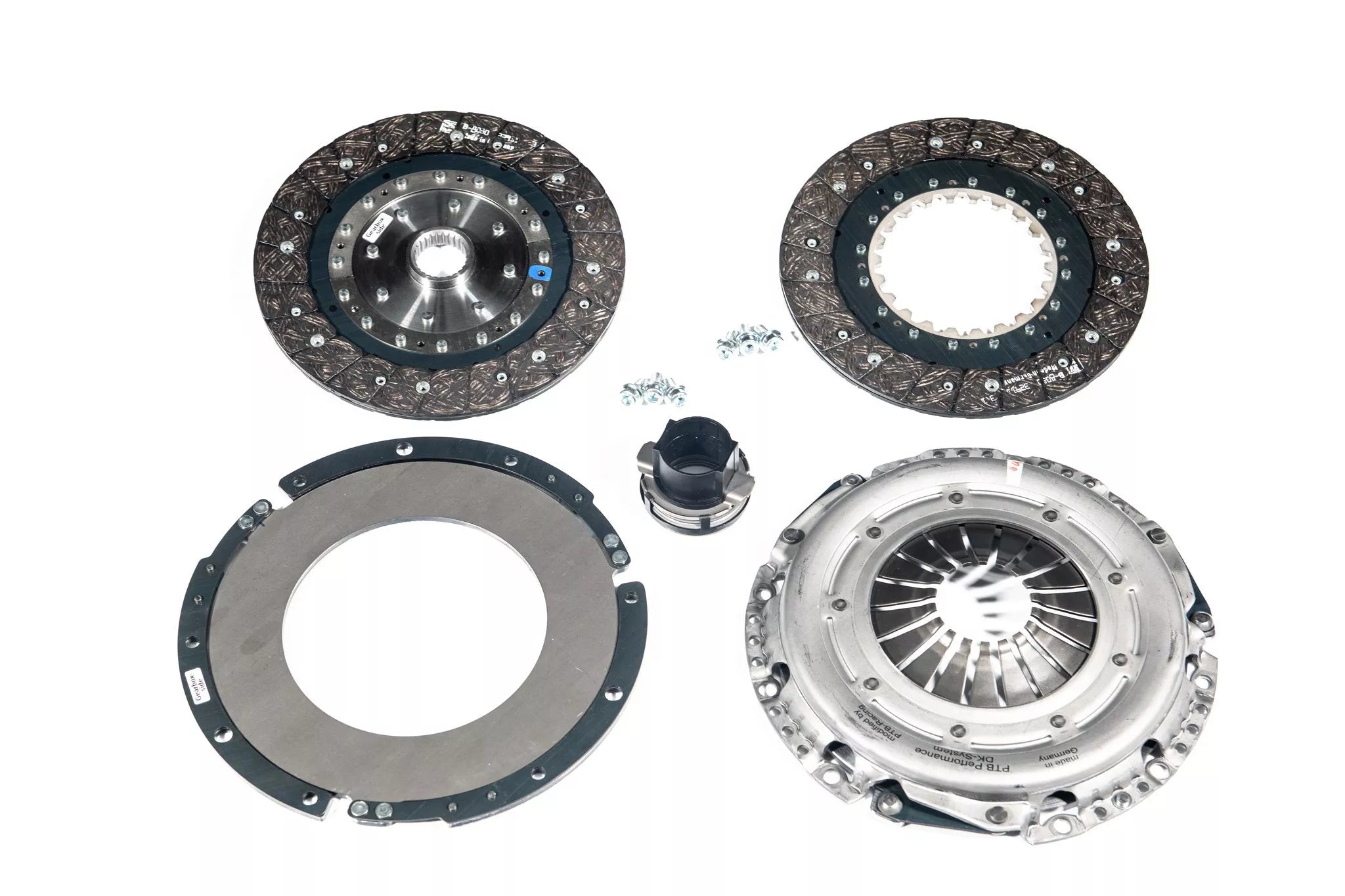

This system comes with a 2-disc clutch with selectable friction discs and pressure plate. At 700 Nm, for example, starting off is like the standard system – smooth and without a hard clutch pedal.
Weight: 18 kg Suitable for: Diesel Max. torque: 700-1100 Nm Comparison number: SACHS: — | LUK — similar: 2294 501 194
8-hole crankshaft connection
Increased block stop torque (up to 250% more)
Protects the engine from crankshaft damage Increases the maximum permissible gearbox load and protects against gear flank damage. Vibrations are reduced
organic/organic/Standard: 700Nmorganic/sinter/Standard: 850Nmsinter/sinter/Standard: 1000Nmorganic/organic/performance: 800Nmorganic/sinter/performance: 950Nmsinter/sinter/performance: 1100Nm
Damping at all speeds
Gearbox noise (gearbox noise) minimized at idle Reduced drone/vibration while driving protects engine and transmission
Our PTB-certified dual-mass flywheels are not street legal and are pure motorsport products for which no warranty or returns are offered. Tested at 1200 Nm for 15,000 km (as of October 18, 2024).
Patented product! Selling under a different name will be prosecuted!
It fits, among others, the following vehicles:
3 (E46) 330 d (150 kW ; 03/2003 – 02/2005) 330 xd (150 kW ; 09/2002 – 12/2004)
3 Cabriolet (E46) 330 Cd (150 kW ; 08/2005 – 12/2007)
3 Coupe (E46) 330 Cd (150 kW ; 03/2003 – 07/2006)
3 Touring (E46) 330 d (150 kW ; 03/2003 – 02/2005) 330 xd (150 kW ; 08/2002 – 05/2005)
X3 (E83) 3.0 d (150 kW ; 01/2004 – 08/2005)
Scope of delivery:
CNC-ZMS X425-01 2-disc clutch XDK-64121 Bolt set for flywheel and pressure plate
