It has comfort ride of flat ride and sporty characteristics. Body and stabilizer will interfere at the full stroke steering, if the front case is set shorter than 279mm. If rear case length is shorter than the 354mm, the lower arm and member will interfere. If the front case length is shorter than 305mm, tire and fender will interfere at full stroke. The recommended setting of dial for street driving is F:24, R:24.
Application:
Engine
2ZR-FXE(2ZR-3JM)
Model Year
11/01 -
Remarks
Specification:
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
?
?
Upper mount
Rubber
Stock
Inverted/Normal type
Inverted
Normal
Damper/Spring layout
Coilover
Separated
Spring rate change at factory
Possible
Possible
Damping force adjustment with wire
-
-
Helper spring (Spring rate N/mm)
-
-
Ride Height:
Factory *2
Test data
Adjustable range High - Low *3
Drivable range High - Low *4
FRONT
Ride height *1
636
?
671 ? 587
671 ? 587
Against stock
-35
?
0 ? -84
0 ? -84
REAR
Ride height *1
640
?
676 ??618
676 ??632
Against stock
-36
?
0 ? -58
0 ? -44
*1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle.

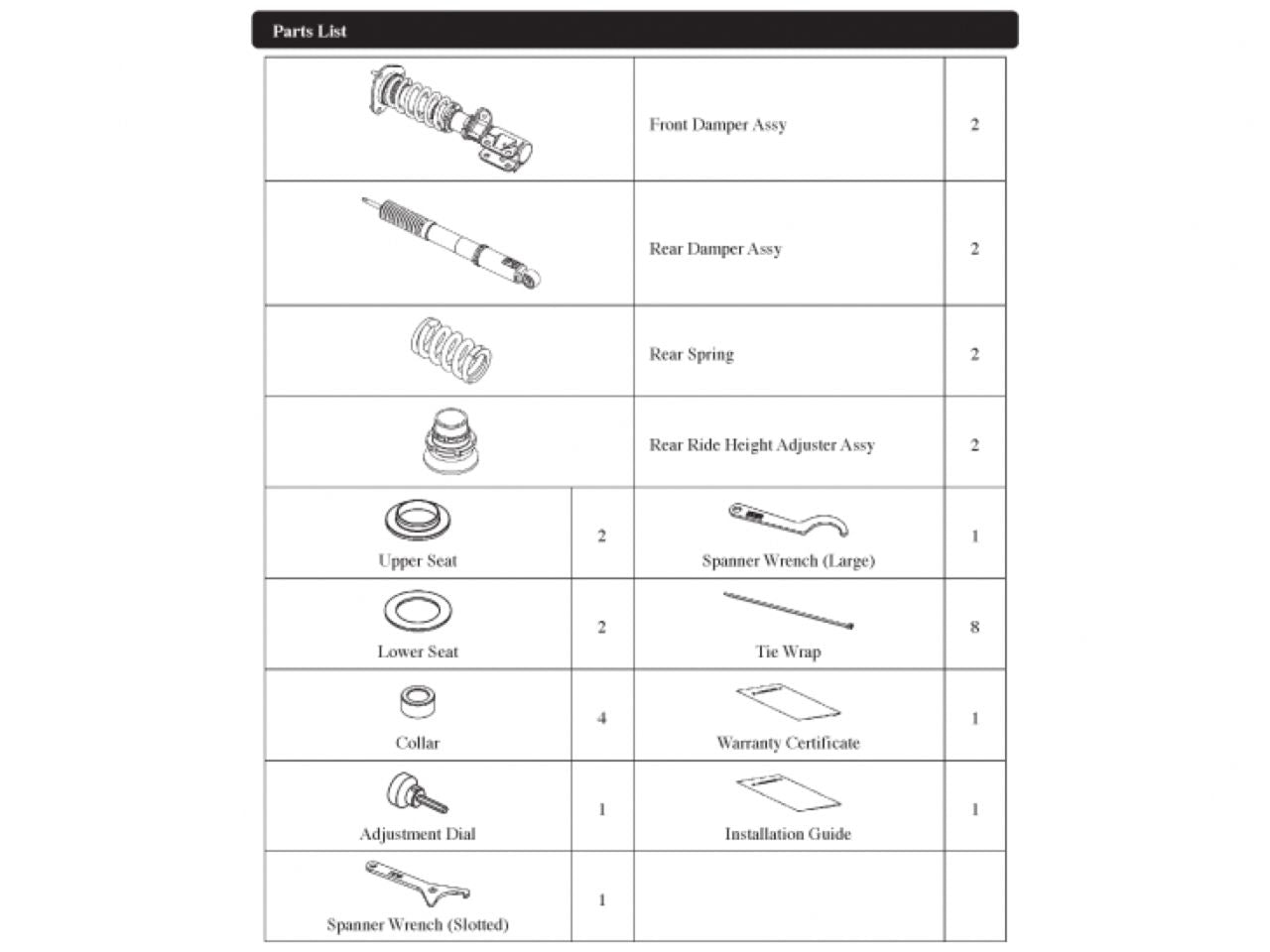

Kit information:
Spring of Full Kit
F
R
Spring rate N/mm(kgf/mm)
49 ( 5 )
49 ( 5 )
Free height (mm)
220
200
Spring type
Straight Barrel type
Straight
Recommended range to change spring rate N/mm(kgf/mm)
±20 ( 2 )
+10 ( 1 )
Specification of damper:
F
R
Damping force (Rebound/Damping)N*
481 / 147
284 / 177
Default position of dial
15
15
Remaining damper stroke (Rebound/Damping)mm
53 / 60
76 / 84
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data:
F
R
Default
Test
Drivable limit High *
Drivable limit Low *
Default
Test
Drivable limit High *
Drivable limit Low *
Length of case (mm)
310
?
344
279
361
?
394
354
Spring Set length(mm)
201
?
201
217
-
-
-
-
Length to ride hight adjuster (mm)
47
?
81
0
42
?
64
37
Lever ratio
1.04
1.67(spg) , 1.11(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
