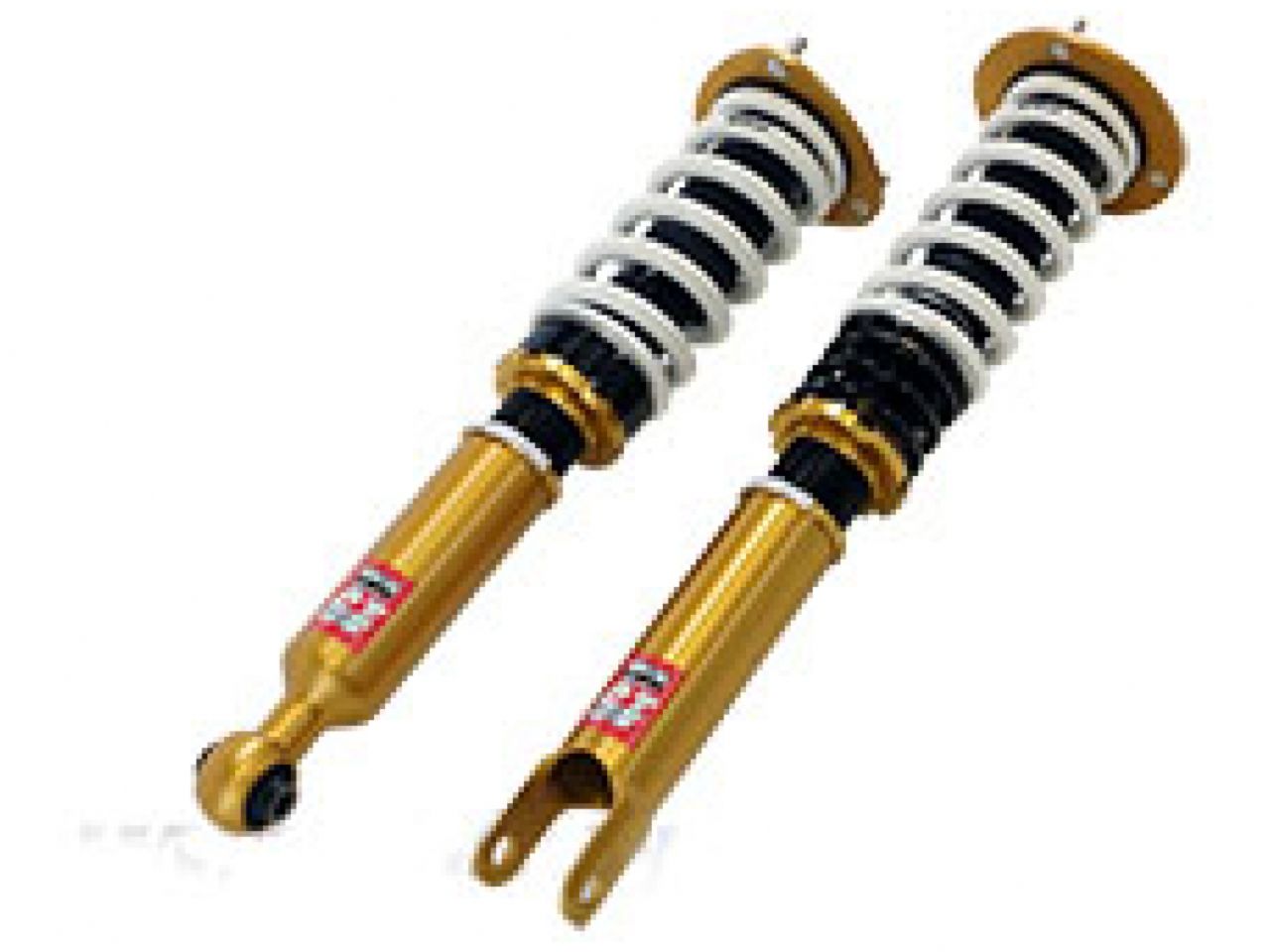

We have made the newest technology of MAX IV GT for JZA80 for the best driving experience for both comfort and sport. With the newest technology of MAX IV GT into JZA80 can make the drive fast and comfortable. We have set the goal of MAX IV to have both driving performance and comfort. Therefore HKS has analyzed and test the transient characteristic, not the general pin point so we could develop the suspension that has firmness and still comfortable damping feeling. For this result we have redesigned needle and developed variant port system that greatly improved the damping characteristic of driving feeling at a low speed. For JZA80, stiff feeling of stock has improved, and luxurious handling by reducing the big behavior change. It has damping but not so stiff and feel comfortable. It is smooth but does not float and stick to the ground. It fits wide range of driving conditions with one dial setting. And also it can drive from the street to circuit race by changing the dial.
Application:
Engine
2JZ-G(T)E
Model Year
93/06 - 02/07
Remarks
REAS installed vehicle can't use
Specification:
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
?
?
Upper mount
Rubber
Rubber
Inverted/Normal type
Normal
Normal
Damper/Spring layout
Coilover
Coilover
Spring rate change at factory
Possible
Possible
Damping force adjustment with wire
-
-
Helper spring (Spring rate N/mm)
? ( 19.8 )
? ( 19.8 )

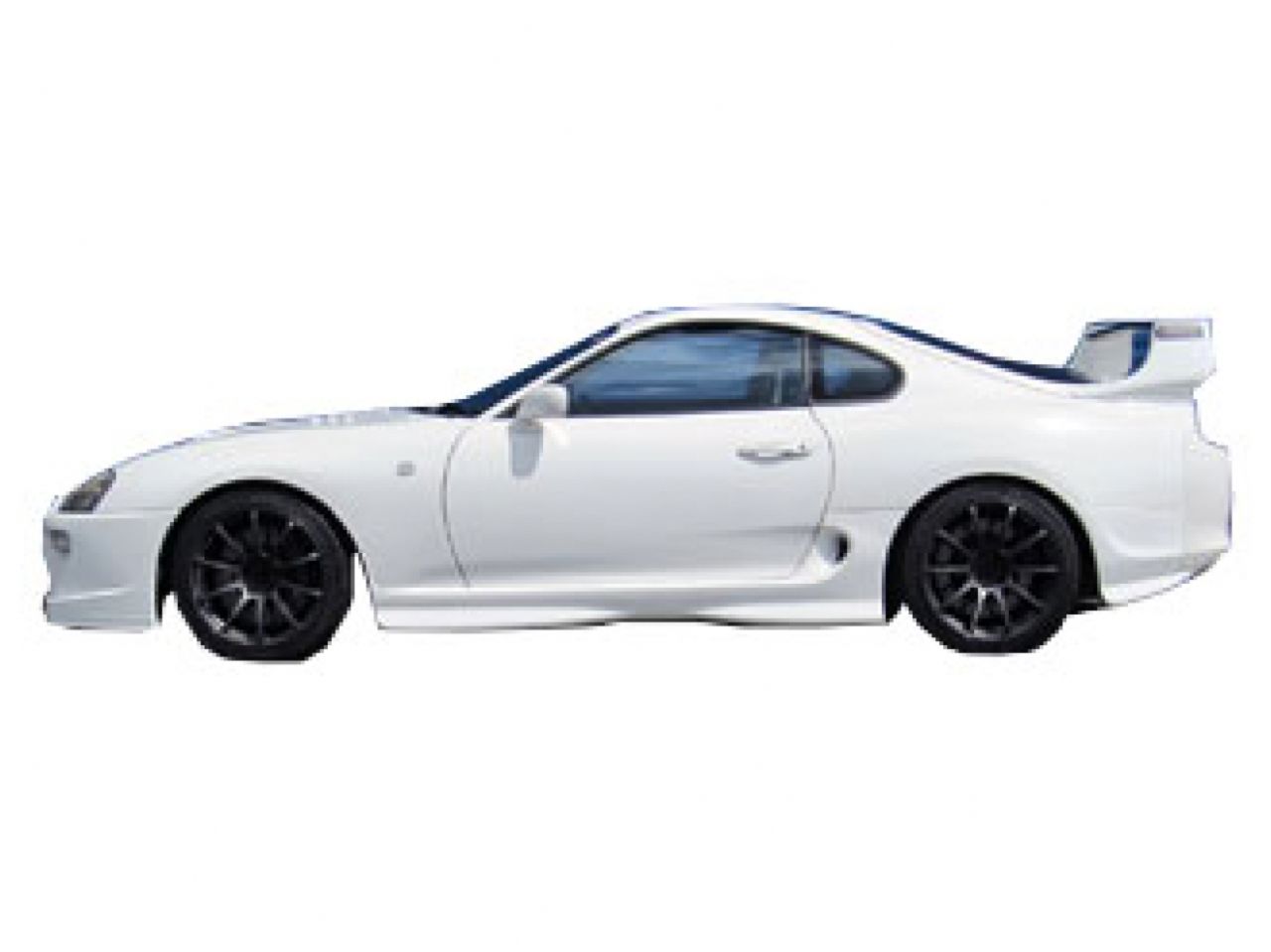

Ride Height:
Factory *2
Test data
Adjustable range High - Low *3
Drivable range High - Low *4
FRONT
Ride height *1
650
?
692 ? 598
692 ? 607
Against stock
-42
?
0 ? -94
0 ? -85
REAR
Ride height *1
645
?
668 ??563
668 ??602
Against stock
-23
?
0 ? -105
0 ? -66
*1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle.

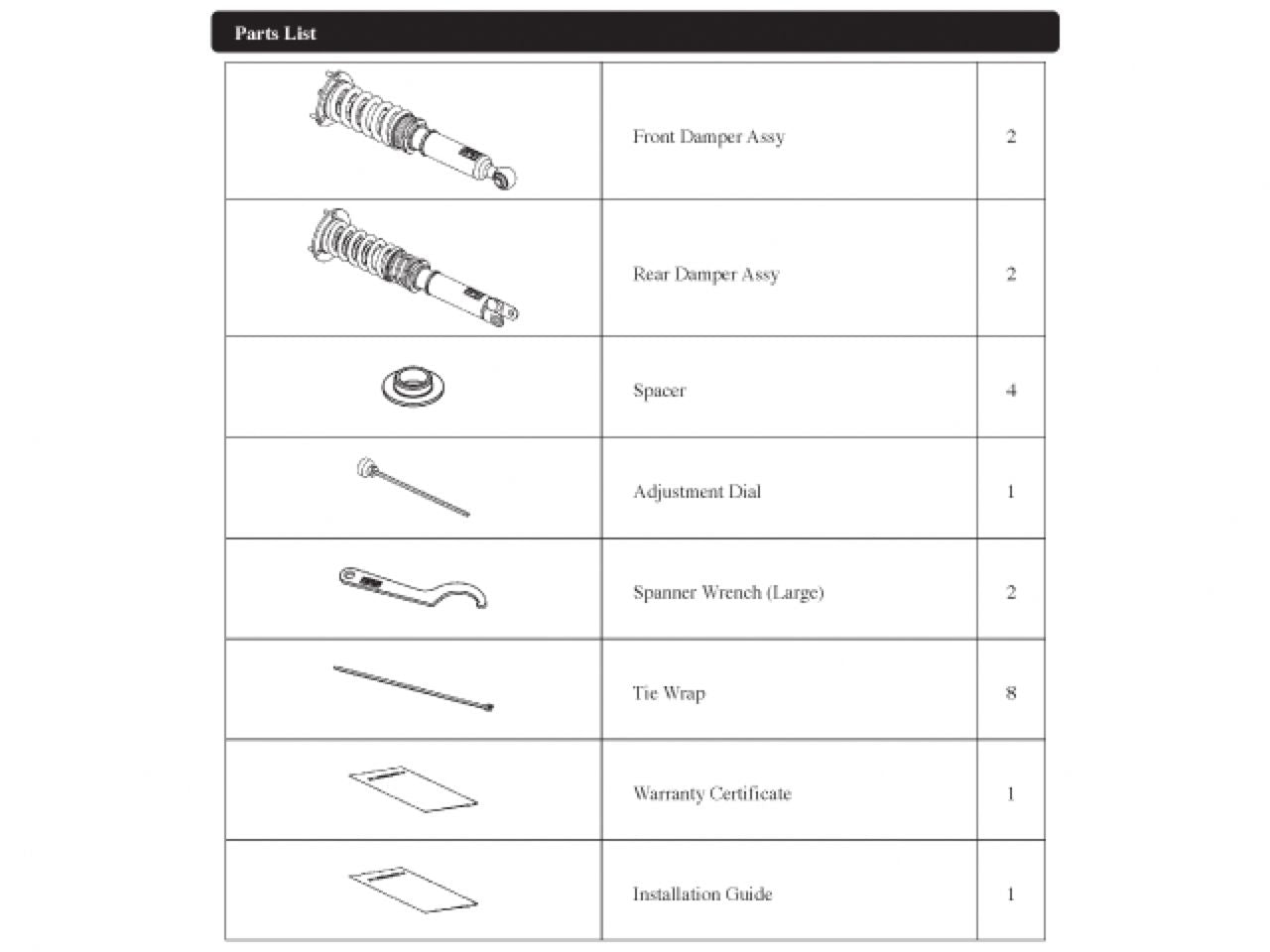

Kit information:
Spring of Full Kit
F
R
Spring rate N/mm(kgf/mm)
137 ( 14 )
79 ( 8 )
Free height (mm)
200
200
Spring type
Straight
Straight
Recommended range to change spring rate N/mm(kgf/mm)
±20 ( 2 )
±20 ( 2 )

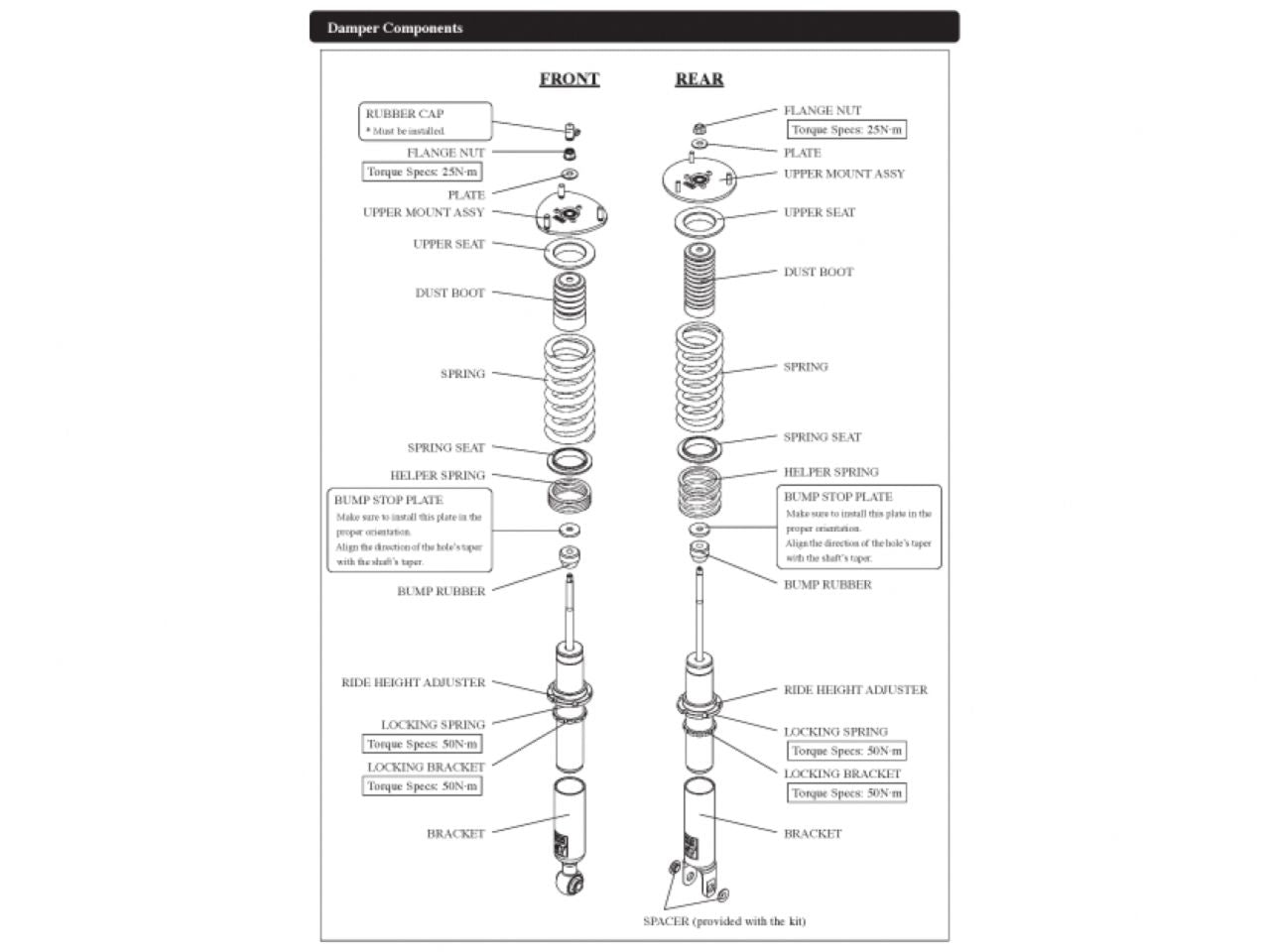

Specification of damper:
F
R
Damping force (Rebound/Damping)N*
2350 / 400
1000 / 200
Default position of dial
15
15
Remaining damper stroke (Rebound/Damping)mm
41 / 49
80 / 56
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F
R
Default
Test
Drivable limit High *
Drivable limit Low *
Default
Test
Drivable limit High *
Drivable limit Low *
Length of case (mm)
373
?
397
368
385
?
408
354
Spring Set length(mm)
221
?
221
240
269
?
269
271
Length to ride hight adjuster (mm)
29
?
53
5
33
?
56
0
Lever ratio
1.78
1.31
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
