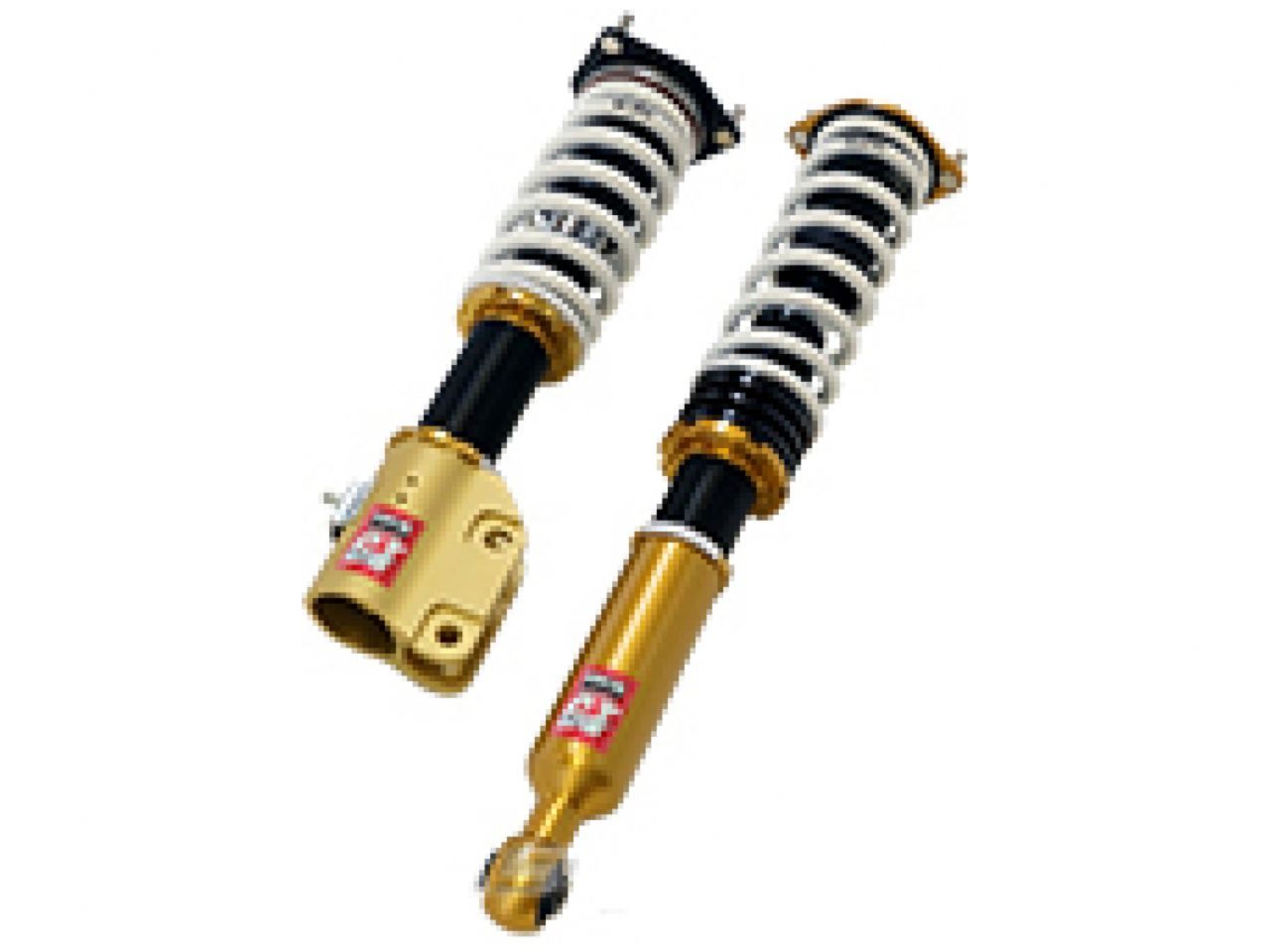

HKS Hipermax IV GT CZ4A Full Kit
$1,590.00
Sold Out
Single Tube Damper Design
Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride. Dust Boot
Protect the shaft from the flying stones. PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment. M Shaft (?46 normal type)
With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience. Adopted Pillow Ball Upper Mount
For more accurate and sharp steering. New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride. Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles) 30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle. Specification:
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
?
?
Upper mount
Rubber
Rubber
Inverted/Normal type
Inverted
Normal
Damper/Spring layout
Coilover
Coilover
Spring rate change at factory
Possible
Possible
Damping force adjustment with wire
-
?
Helper spring
-
? ( 19.8 )
Kit Information
F
R
Spring rate N/mm(kgf/mm)
79 ( 8 )
49 ( 5 )
Free height (mm)
220
250
Spring type
Straight Barrel type
Straight
Recommended range to change spring rate N/mm(kgf/mm)
±20 ( 2 )
±20 ( 2 )
F
R
Damping force (Rebound/Damping)N*
677 / 206
647 / 177
Default position of dial
15
15
Remaining damper stroke (Rebound/Damping)mm
34 / 79
59 / 76
F
R
Default
Test
Drivable limit
Drivable limit
Default
Test
Drivable limit
Drivable limit
Length of
302
?
323
293
422
?
442
406
Spring
202
?
202
220
287
?
286
303
Length to ride hight
99
?
120
72
57
?
78
25
Lever ratio
1.04
1.10
