Fastace AHX12RV 3.0 Fork for Surron & Talaria - Gold
$699.00
Sold Out

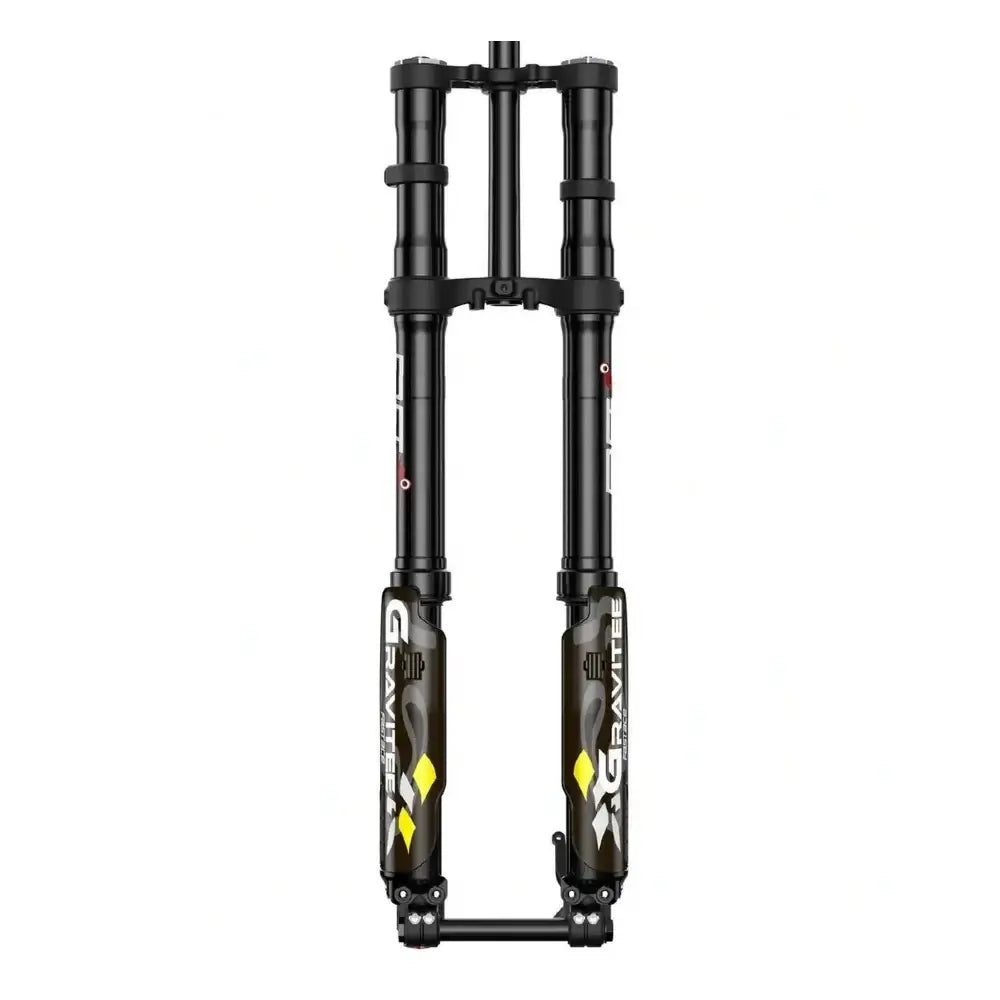

Fastace AHX12RV 3.0 Fork Ultimate Surron & Talaria Fork Upgrade 37 mm Coil Performance, fits: Sur‑Ron Light Bee, Talaria XXX, MX3, MX4, MX5 & E‑Ride Pro SS / SR
Why riders are ditching the stock KKE/DNM front‑ends
200 mm of bottom‑out‑proof travel – forged crown and 37 mm stanchions soak up motocross‑size hits without flex.

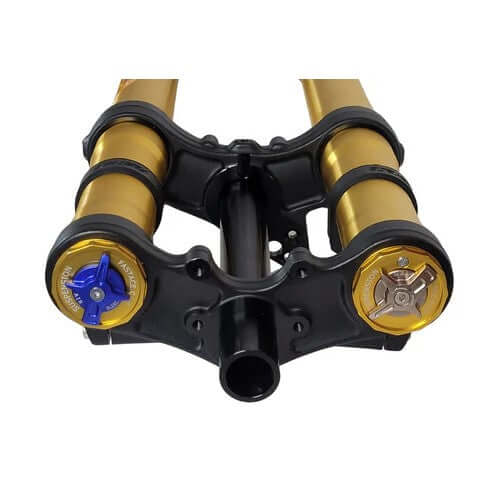

True double‑adjustable damping – 18‑click high‑speed & low‑speed compression + 18‑click rebound let you tune for whoops, berms, street, or skate‑park landings.
Pre‑installed 60 lb coil spring – perfect spring rate for most 160–210LB riders. swap in minutes for lighter/heavier coils.
Plug‑and‑play fitment – 1⅛ʺ steer tube, 20 × 110 mm Boost axle and 203 mm PM brake mount. Bolt straight onto Sur‑Ron Light Bee X, Talaria XXX, MX3, MX4, MX5 and E‑Ride Pro SS / SR Bikes.

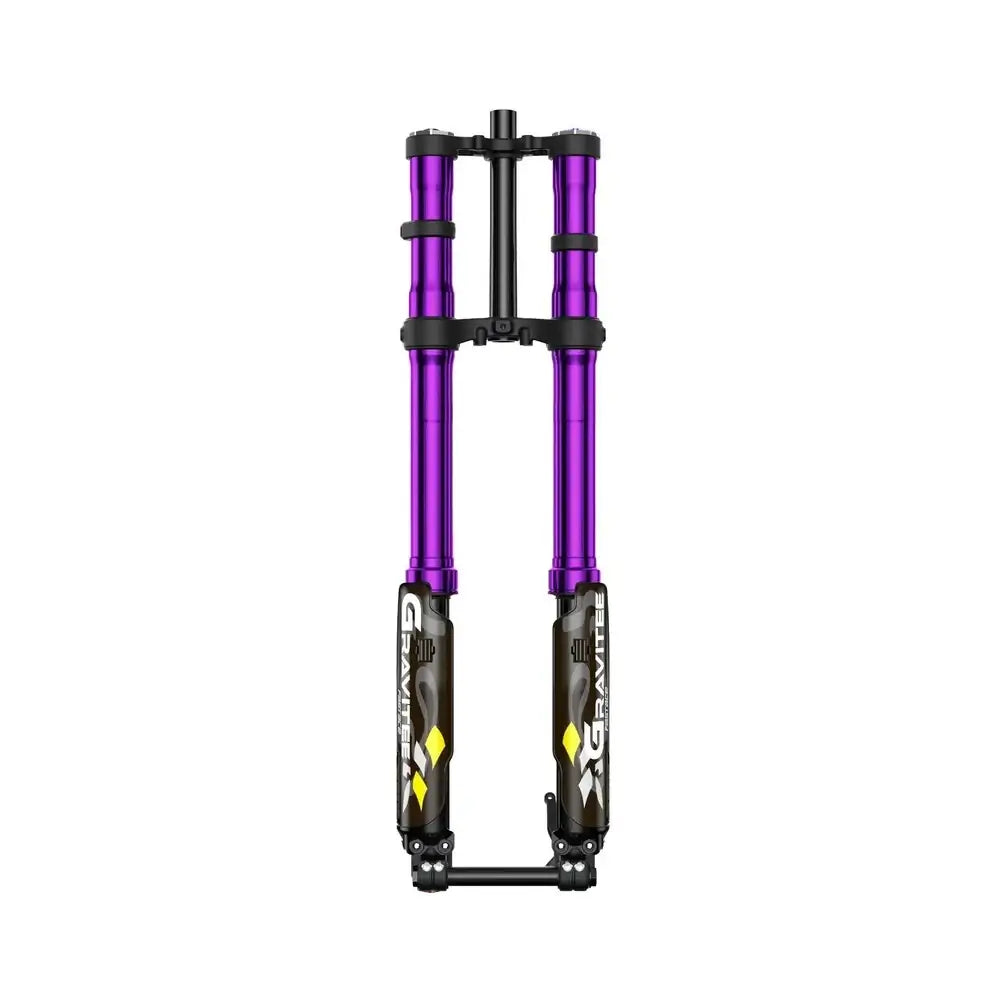

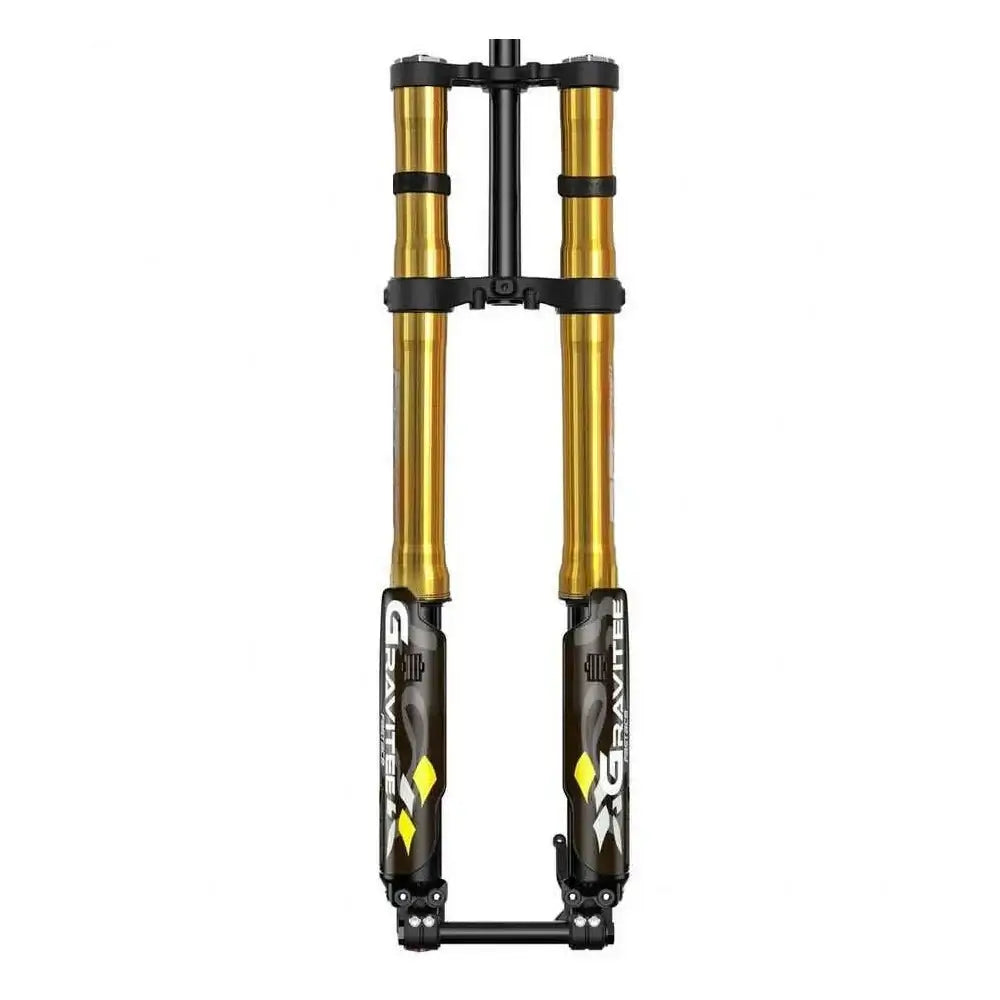

Color‑matched style – choose stealth Black , factory‑race Gold or limited Purple anodizing to match your build theme.
*Real‑world tested sag range: 25–30 % at 190 lb rider weight.
Complete spec sheet
Spec Detail
Stanchion Ø 37 mm hard‑anodized 7075‑T6
Travel 200 mm (7.87ʺ)
Spring 60LB Coil
Damping HS/LS compression, rebound
Axle 20 mm thru‑axle, 110 mm Boost
Steer Tube 1⅛ʺ straight – Sur‑Ron/Talaria OEM length
Brake mount Post‑mount 203mm (Use this adapter for 220MM Rotors)
Offset 46 mm
Weight 8.1 lb (3.7 kg) w/ spring
Built‑in upgrade path – DropCrown 30mm Triple Clamp
Unlock an extra inch of bar height and sharpen steering with our purpose‑built DropCrown triple clamp . Machined from 6061‑T6, it lowers the fork legs without trimming the steer tube. Perfect for tall riders or super‑moto conversions.
Installation in 30 minutes
Remove front wheel & stock fork.
Slide AHX12RV into head‑tube, torque stem bolts to 9 Nm.
Re‑use OEM brake caliper or upgrade to 220mm rotor.
Set sag to ~25 % (see guide).
Dial rebound first, then LS/HS compression.
No cutting, no special tools just grease the steer tube bearings and ride!
